YXC75D Series

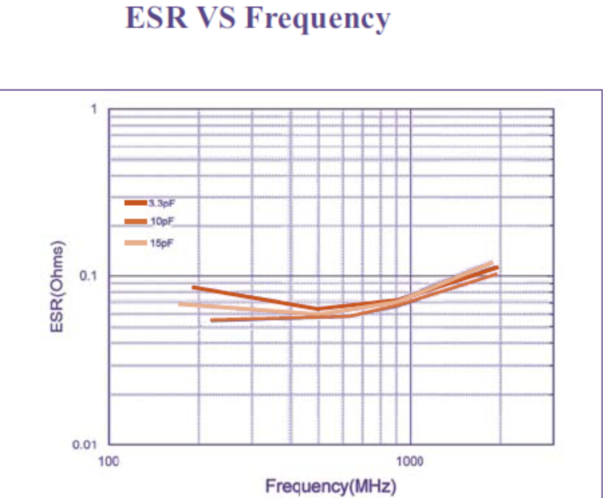

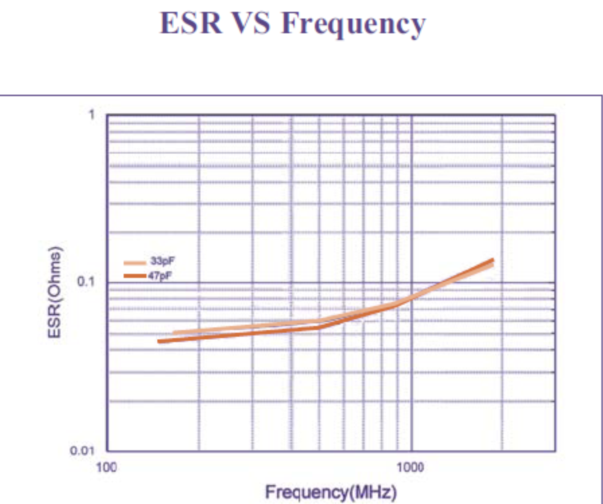

Remark: special capacitance, tolerance and WVDC are available, consult with Yixin Microwave

Item	Specifications
Quality Factors(Q)	2000 min.
Insulation Resistance(IR)	105 Megohms min. @ +25°C at rated WVDC. 104 Megohms min. @ +125°C at rated WVDC.
Rated Voltage(WVDC)	250V
Dielectric Withstanding Voltage (DWV)	250% of rated Voltage for 5 seconds.
Operating Temperature Range	－55℃ to +125℃
Temperature Coefficient(TC)	0±30ppm/℃
Capacitance Drift	±0.02% or ±0.02pF, whichever is greater.
Piezoelectric Effects	None

Item	Specifications	Method
Terminal Adhesion	Temrination should not pull off, Cemera should remain undamaged	Linear pull force exerted on axial leads soldered to each terninal 2.0lbs
Resistance to soldering heat	No mechanical damage Capacitance change:-1.0%~+2.0% Q>500 I.R.>10 G Ohms breakdown voltage:2.5 X WVDC	Preheat device to 150°C-180°C for 60sec DIP in 260°C±5°C solder for 10±1 sec.Measure after 24±2 hours cooling period
Thermal Shock	No mechanical damage Capacitance change:±5% or 0.5pF max Q>500 I.R.>10 G ohms breakdown voltage:2.5 X WVDC	MIL-STD-202, Method 107, Condition A. At the maximum rated temperature(-55℃ and 125℃) stay 30 minutes.The time of removing shall be not more than 3 minutes. Perform the five cycles.
Humidity （steady state）	No mechanical damage Capacitance change:±5% or 0.5pF max Q>300 I.R.>10 G ohms breakdown voltage:2.5 X WVDC	MIL-STD-202.Method 106
Low voltage hummidity	No mechanical damage Capacitance change:±3% or 0.3pF max Q>300 I.R.>10 G ohms breakdown voltage:2.5 X WVDC	MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while subjected to an environment of 85°C with 85% relative humidity for 240 hours min.
Life	No mechanical damage Capacitance change:±2% or 0.5pF max Q>500 I.R.>10 G ohms breakdown voltage:2.5 X WVDC	MIL-STD-202, Method 108, for 1000 hours, at 125℃. 200% Rated voltage D.C. applied.
