YXC70G Series

PRODUCTS > 70 Series > YXC70G Series

YXC70G Series

Product details

Product Features

High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, Low noise,Ultra-Stable Performance

Product Application

Typical functional applications: Bypass, Coupling, Tuning,Feedback,Impedance Matching and D.C. Blocking.

Typical applications field: HF/VHF RF Power Amplifiers,RF Induction Heating,Broadcast Transmitter,Military Radios,Antenna Tuning,Plasma Chambers and Medical(MRI coils)

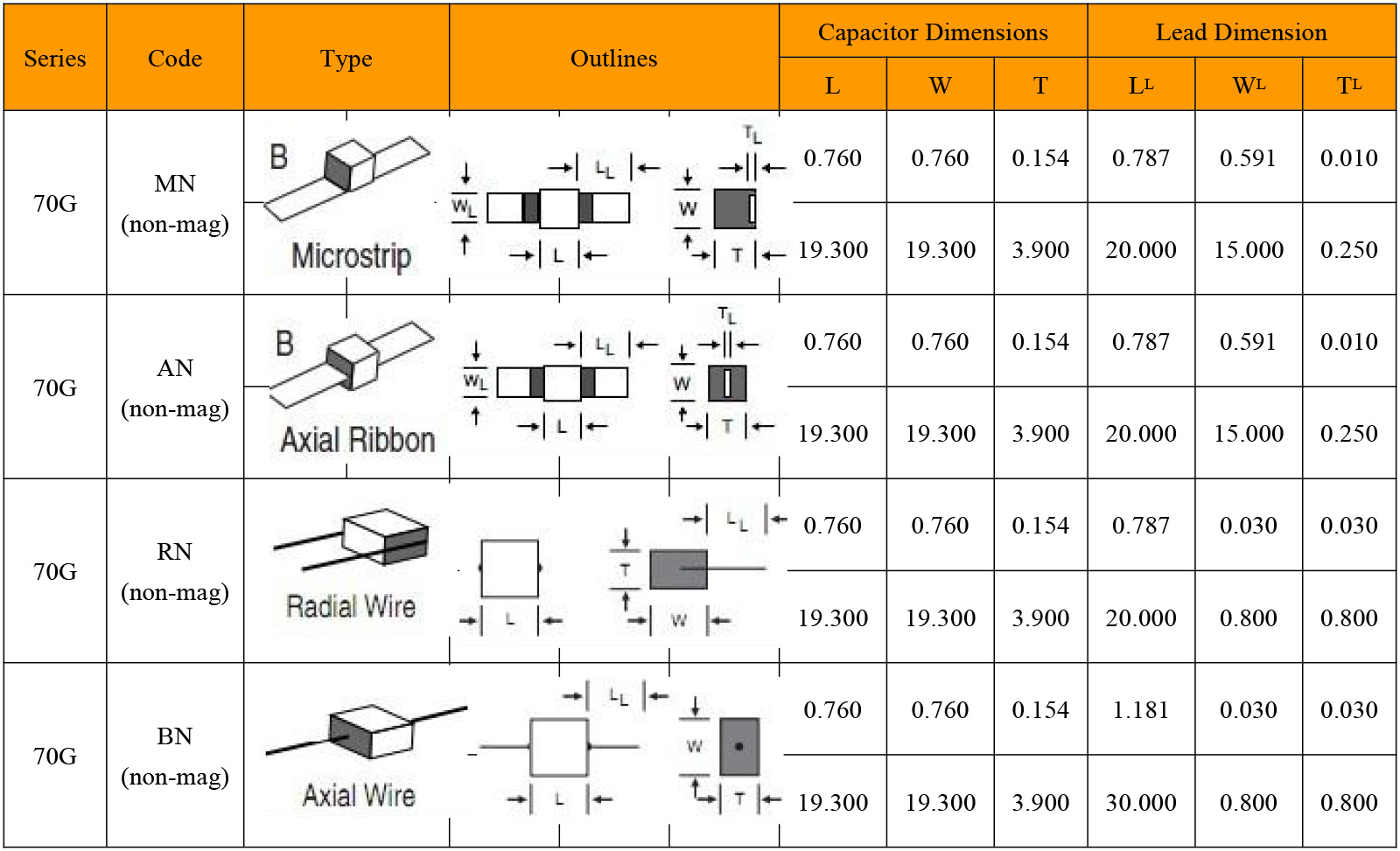

YXC70B Series Rated Capacitance Table

Code	Cap. pF	Tol.	Rated WVDC	Code	Cap. pF	Tol.	Rated WVDC	Code	Cap. pF	Tol.	Rated WVDC
1R0	1.0	B C D	3000V 5000V	330	33	F G J K M	3000V 5000V	821	820	F G J K M	2000V
1R2	1.2			390	39			102	1000
1R5	1.5			470	47			122	1200
1R8	1.8			560	56			152	1500
2R2	2.2			680	68			182	1800
2R7	2.7			820	82			222	2200
3R3	3.3			101	100			272	2700		2000V
3R9	3.9			121	120			332	3300
4R7	4.7			151	150			472	4700
5R6	5.6			181	180			512	5100
6R8	6.8			221	220			562	5600	G J K M	1000V
8R2	8.2			271	270		3000V	682	6800
100	10	F G J K M		301	300			752	7500
120	12			391	390			822	8200
150	15			471	470			103	10000
180	18			561	560
220	22			681	680
270	27

Remark: special capacitance, tolerance and WVDC are available, consult with Yixin Microwave

Performance

Item	Specifications
Quality Factors(Q)	1pF to 1000pF :greater than 2000 at 1 MHz. Value over 1000pF :greater than 2000 at 1 KHz.
Insulation Resistance(I R)	Test voltage:500V 105 Megohms min. @ +25°C at rated WVDC. 104 Megohms min. @ +125°C at rated WVDC.
Rated Voltage(WVDC)	See Rated Voltage Table
Dielectric Withstanding Voltage (DWV)	250% of rated Voltage for 5 seconds.
Operating Temperature Range	－55℃ to +125℃
Temperature Coefficient(TC)	0±30ppm/℃
Capacitance Drift	±0.02% or ±0.02pF, whichever is greater.
Piezoelectric Effects	None

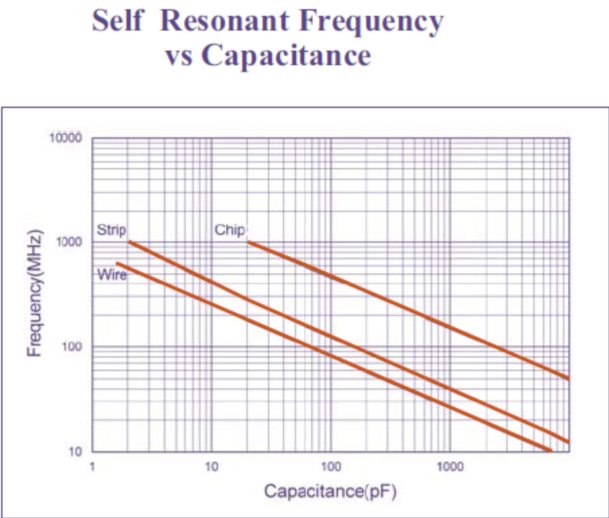

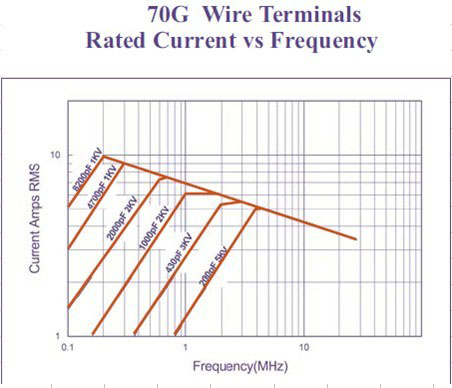

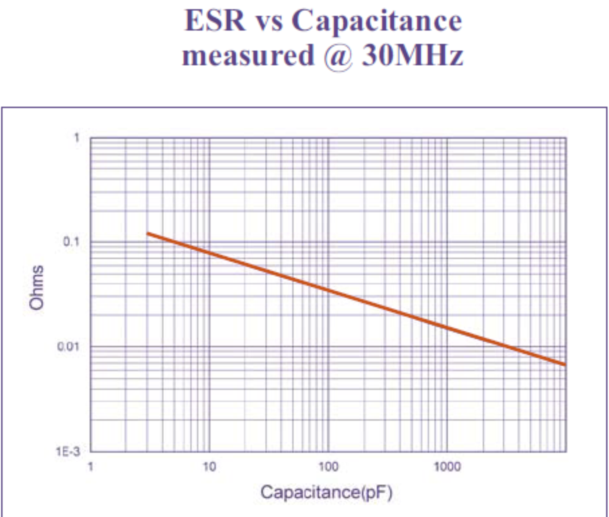

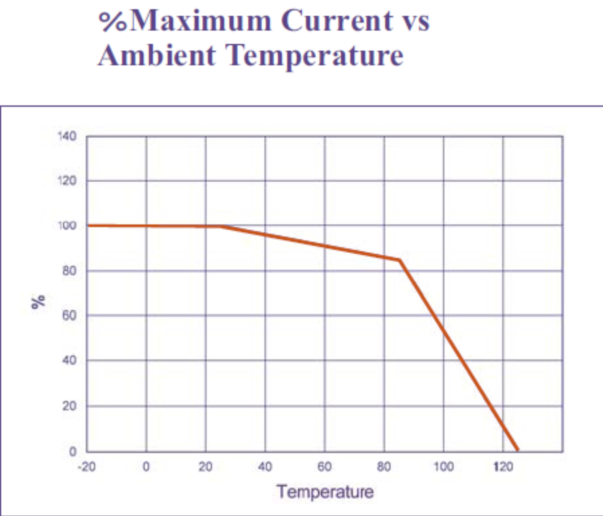

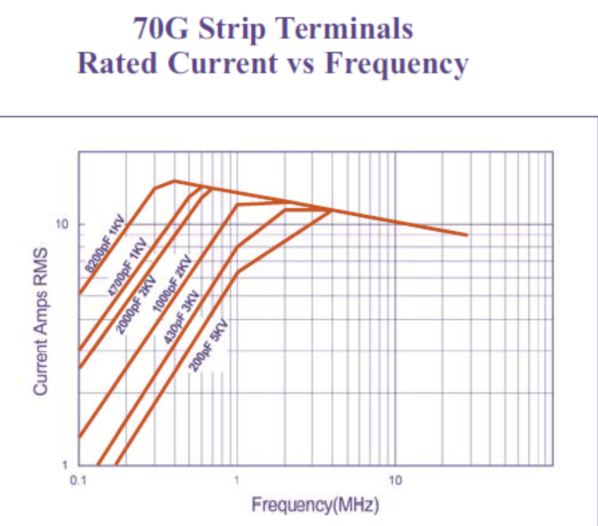

Environmental Tests

Item	Specifications	Method
Thermal Shock	DWV: the initial value IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.5% or 0.5pF.	MIL-STD-202, Method 107, Condition A. At the maximum rated temperature(-55℃ and 125℃) stay 30 minutes.The time of removing shall be not more than 3 minutes. Perform the five cycles.
Moisture resistance		MIL-STD-202, Method 106.
Humidity (steady state)	DWV: the initial value IR: the initial value Capacitance change: no more than 0.3% or 0.3pF.	MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while subjected to an environment of 85°C with 85% relative humidity for 240 hours min.
Life	IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.2%	MIL-STD-202, Method 108, for 2000 hours, at 125℃. 200% Rated voltage D.C. applied.
Terminal Strength	Microstrip: more than 20N Lead wire: more than 10N	MIL-STD-202, Method 211
