Flange Mount Termination

General Parameters:

Standard Impedance:50Ω

Substrate Material: BeO(default)、AlN, Al₂O₃

Terminals：Silver over Nickle

Resistance Tolerance:±5%(default)；±2%, ±1%

Power Rating：5～800W

Frequency Range: DC～18GHz

Temperature Range：-55～+150℃

Temperature Coefficient：≤150ppm/℃

Lead-free, RoHS Compliant

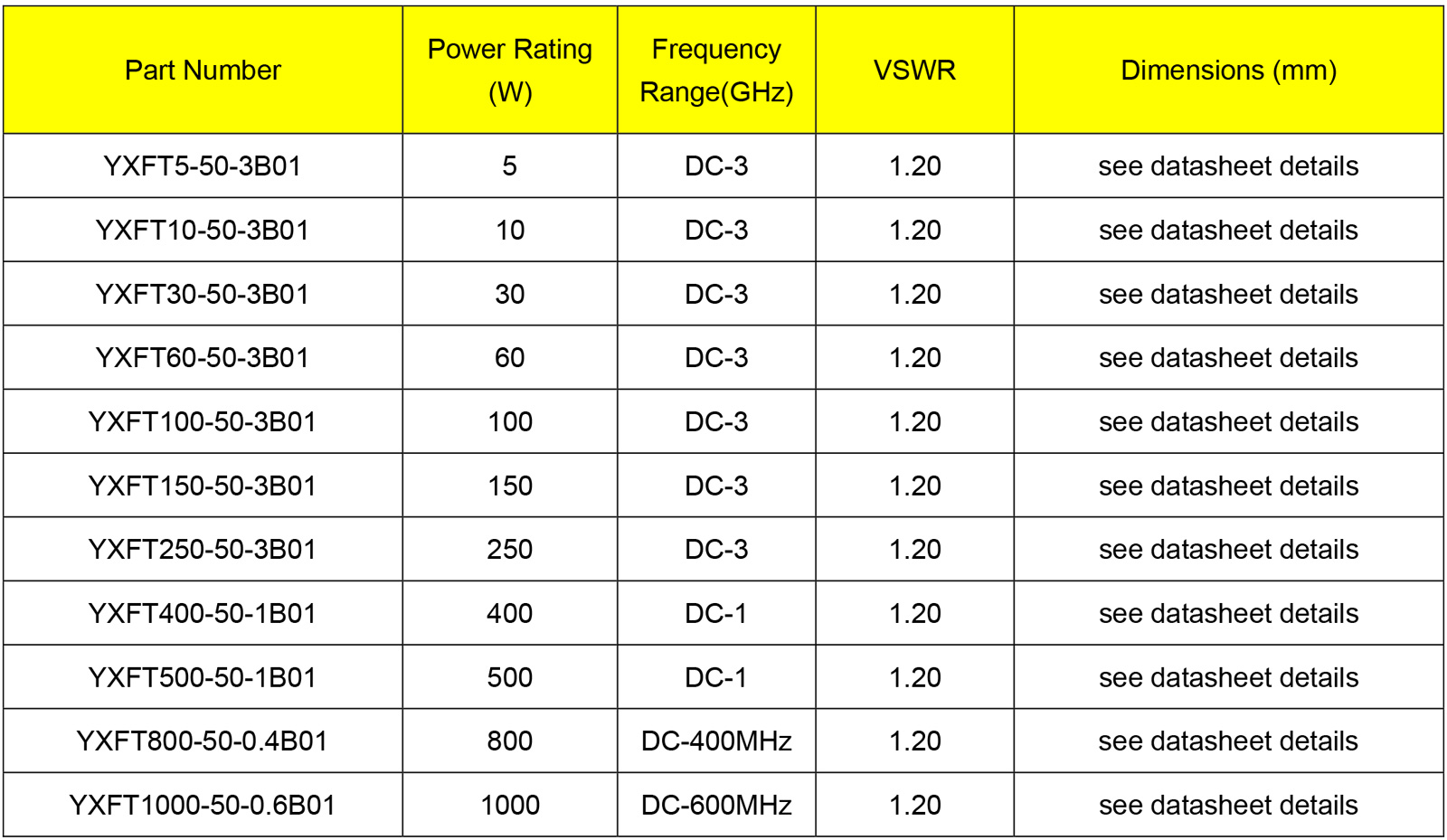

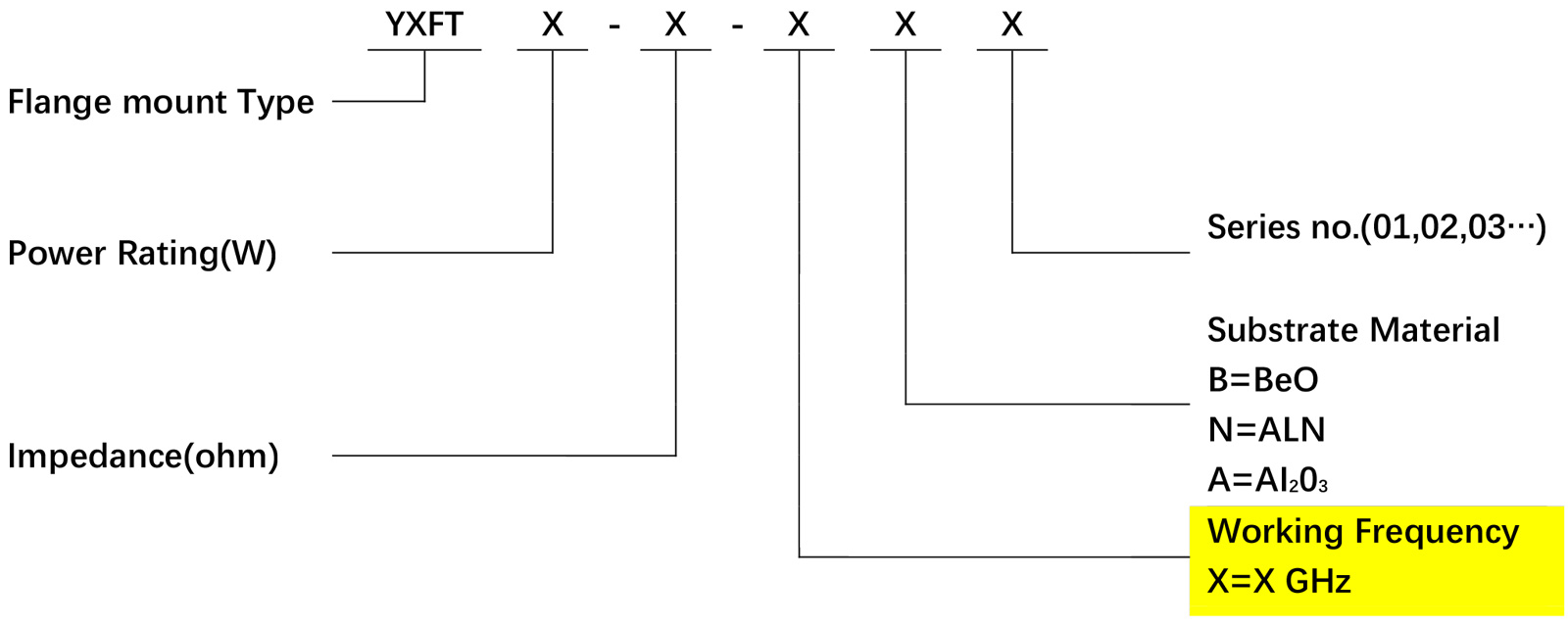

How to order

* We provide customized product according to the customers’ requirement, such as Lead Length、Resistance and Configuration, sizes etc.

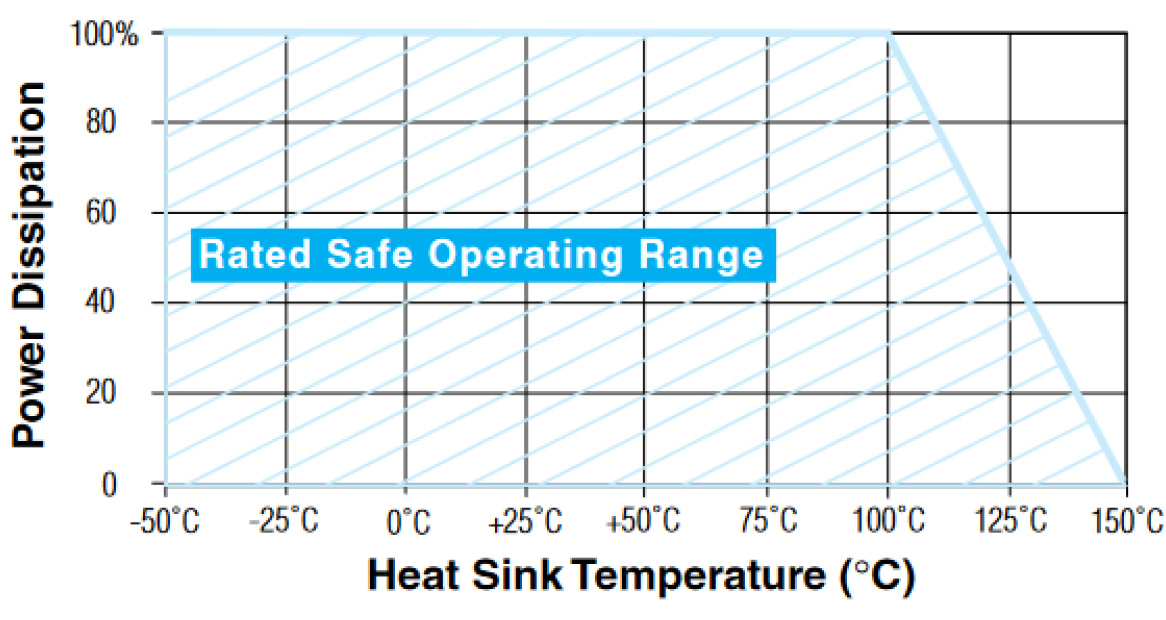

Power Derating Curve (Same as ATC ones)

Mounting procedures suggestion

1. Solder part or tabs in place with controlled temperature iron(260°C)

2. Forming a small loop in the tab will act as a strain relief as the heat is dissipated.
