SMT Chip resistor

General Parameters:

Standard Impedance:50Ω

Substrate Material: BeO(default)、AlN，Al₂O₃

Resistance Tolerance:±5%(default)；±2%, ±1%

Power Rating：3～500W

Temperature Range：-55～+150℃

Temperature Coefficient：≤150ppm/℃

Lead-free, RoHS Compliant

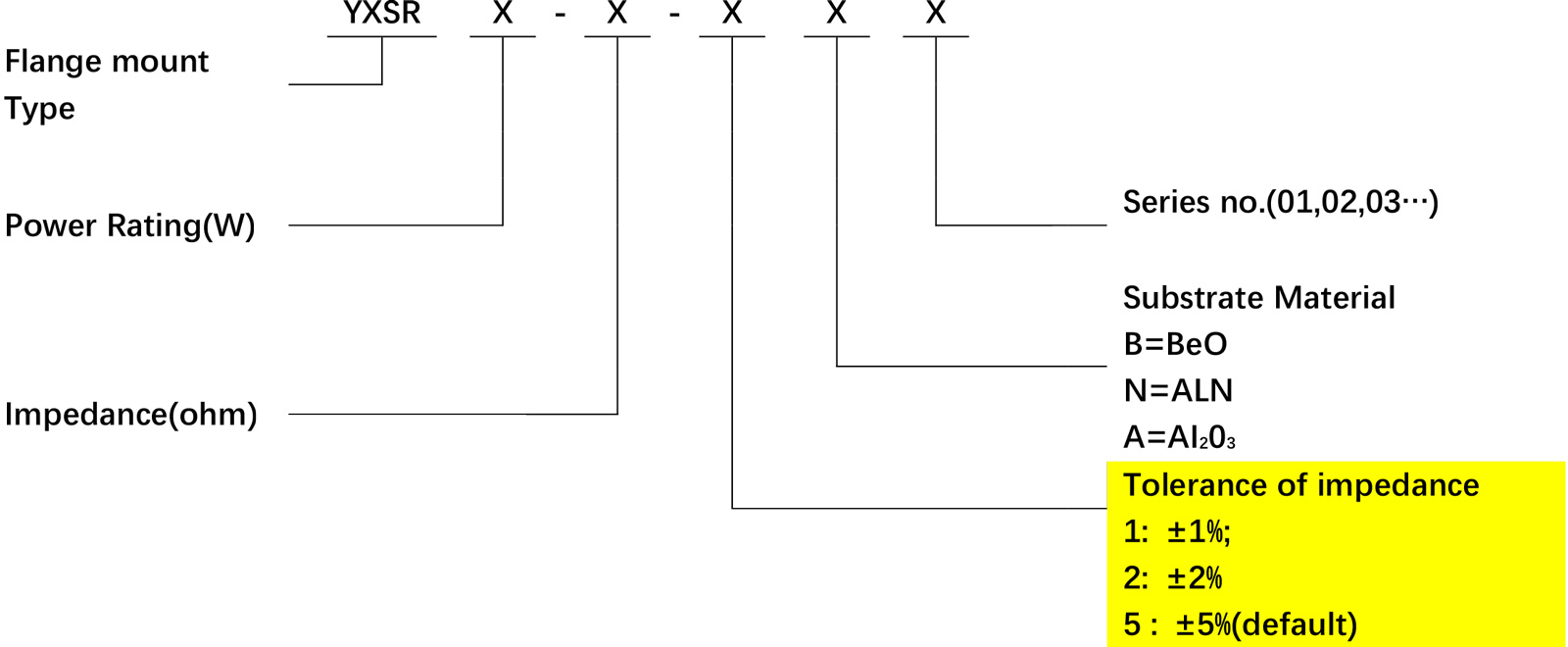

How to order

* We provide customized product according to the customers’ requirement, such as Lead Length、Resistance and Configuration, sizes etc.

Power Derating Curve (Same as ATC ones)

Mounting procedures suggestion

1. Solder part or tabs in place with controlled temperature iron(260°C)

2. Forming a small loop in the tab will act as a strain relief as the heat is dissipated.
