Flange Mount Attenuator

ELECTRICAL SPECIFICATIONS

• Attenuation Value：1～30dB

• Attenuation Tolerance:  1～10dB ±0.6dB

                                         11～20dB ±0.8dB

                                         21～30dB ±1.0dB

• Power: 2-500W

• Working Frequency: DC～6GHz

• Operating Temperature Range: -55˚C - +150˚C

• Temperature Coefficient: < 150 ppm/˚C

MECHANICAL SPECIFICATIONS

• Substrate Material: BeO, ALN or Al₂O₃

• Process: Thin Film

• Tabs: 99.99% Pure Silver, 0.10 (0.004) thick

• Cover: Alumina

Lead-free, RoHS Compliant

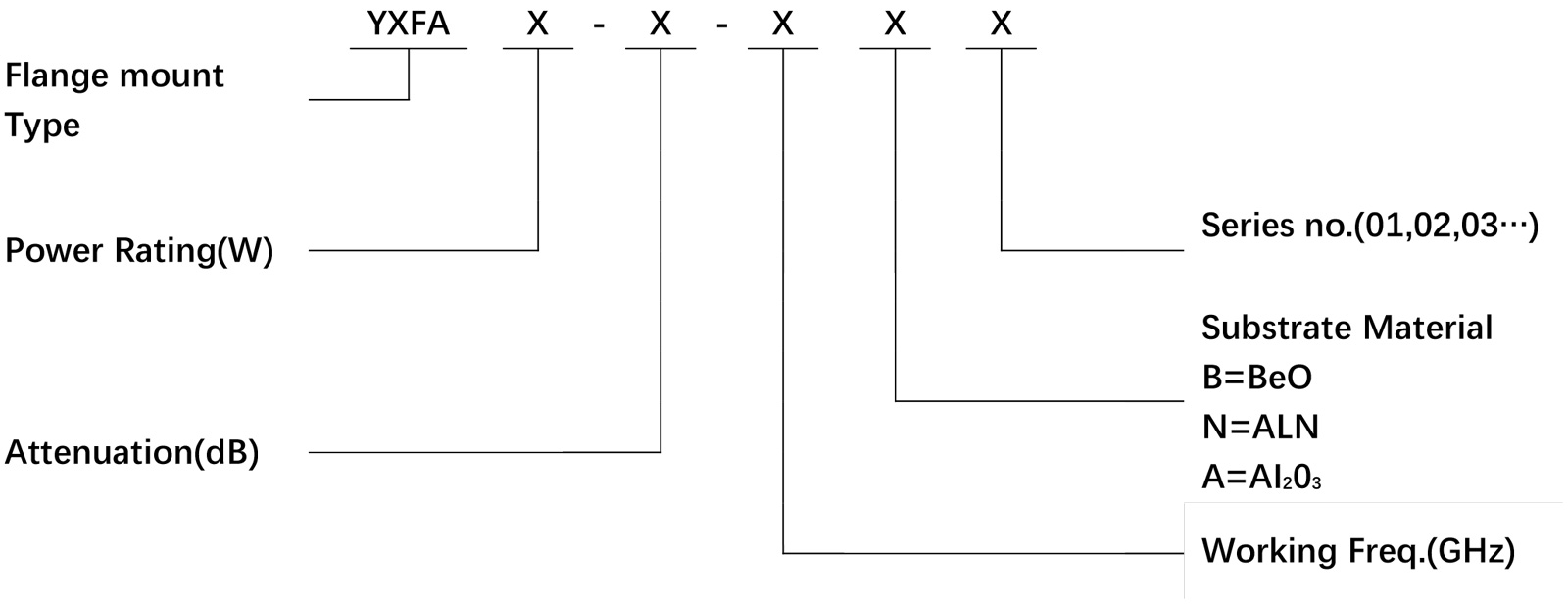

How to order:

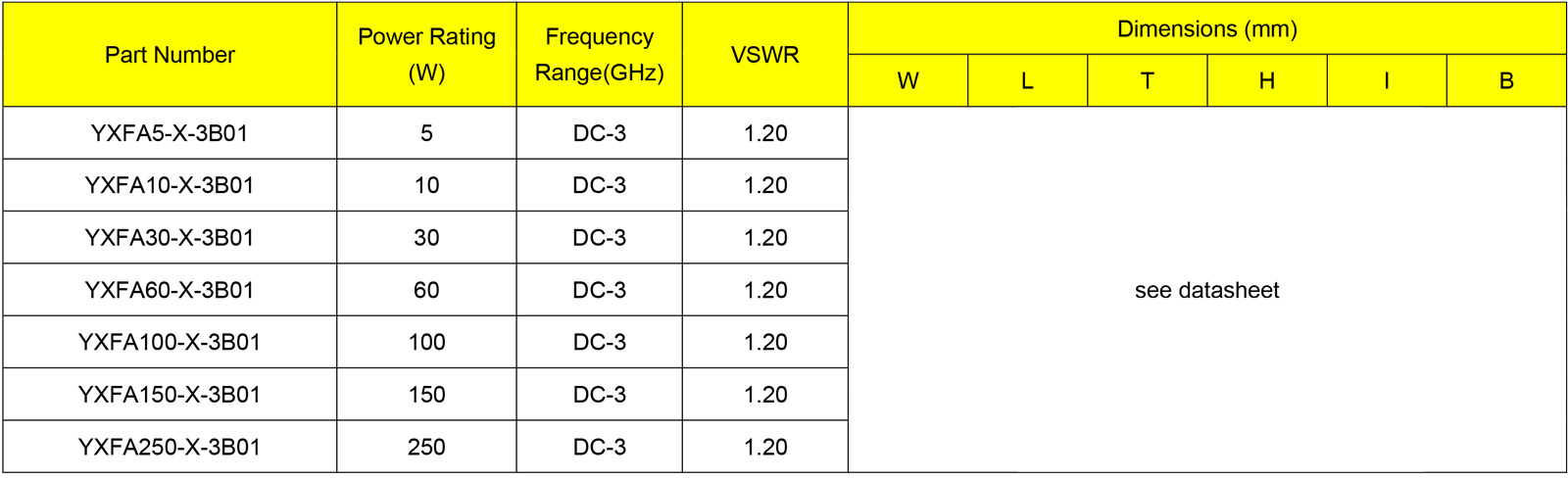

Model no. List:

* We provide customized product according to the customers’ requirement, such as Lead Length、Attenuation value and Configuration, sizes etc.
