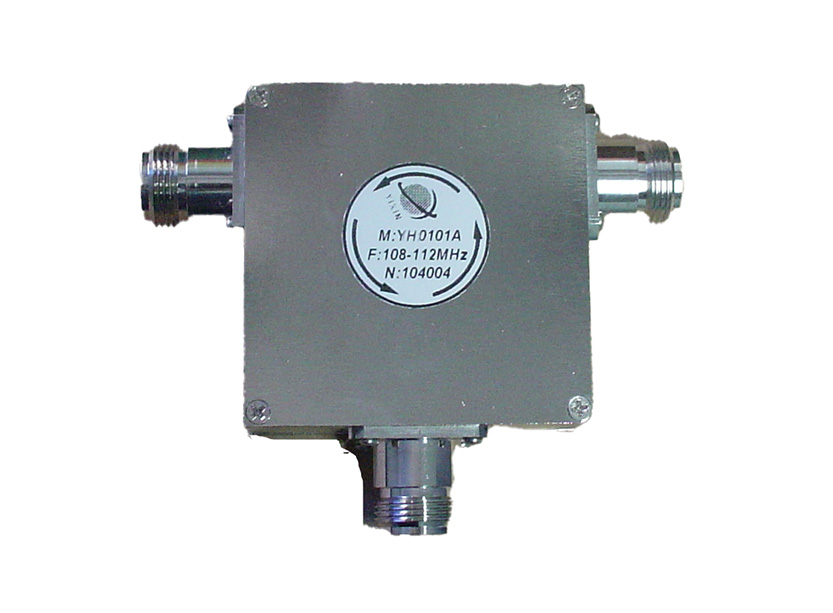

Broad Bandwidth Circulator
Broad Bandwidth Circulator
Introduction
1.Frequency range from 700MHz to 20GHz
2.Port isolation，Module Integration，Transceiver subsystems
3.Custom design available upon request
4.All the below are technical indexes at normal temperature
Borad Bandwidth Circulator (1/2)
| P/N. | Frequency Range | Bandwidth | Insertion Loss | Isolation | VSWR | Operating Temp. | Forward Power | Size | Connector type |
| (MHz) | MHz | (dB.Max) | (dB.Min) | (Max) | (℃) | (W) | L×W×H/mm | ||
| YXDC0104-C | 70-83 | 13 | 0.6 | 18 | 1.30 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0104-C | 88-108 | 20 | 0.5 | 19 | 1.25 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0104-C | 108-112 | 4 | 0.4 | 20 | 1.20 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0104-C | 118-137 | 19 | 0.4 | 20 | 1.25 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0104-C | 148-174 | 26 | 0.4 | 20 | 1.25 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0104-C | 174-230 | 56 | 0.4 | 20 | 1.25 | -15～+60 | 100 | 41x65x20 | Stripline |
| YXDC0103-C | 225-400 | 175 | 0.7 | 18 | 1.30 | -40～+85 | 100 | 53x77x26 | Stripline |
| YXDC0301-A | 328-336 | 8 | 0.4 | 23 | 1.20 | -15～+60 | 100 | 52x44x22 | Stripline |
| YXDC0402-A | 400-470 | 70 | 0.5 | 20 | 1.25 | -20～+65 | 50 | 44x45.5x15.6 | Stripline |
| YXCC0401F-C | 403-520 | 117 | 0.5 | 17 | 1.35 | -20～+65 | 100 | 50x50x20 | N/SMA |
| YXCC0701 | 700-900 | 200 | 0.5 | 20 | 1.30 | -20～+65 | 150 | 38x35x20 | N/SMA |
Borad Bandwidth Circulator (2/2)
| P/N. | Frequency Range | Bandwidth | Insertion Loss | Isolation | VSWR | Operating Temp. | Forward Power | Size | Connector type |
| (GHz) | GHz | (dB.Max) | (dB.Min) | (Max) | (℃) | (W) | L×W×H/mm | ||
| YXCC101-C | 1.1-1.6 | 0.5 | 0.5 | 15 | 1.45 | -20~+65 | 100 | 40.0x46.0x17.0 | SMA |
| YXCC201-J | 1-2 | 1 | 0.8 | 15 | 1.40 | 0~+60 | 10 | 70.0x80.0x21.0 | SMA |
| YXCC301-A | 2-4 | 2 | 0.6 | 16 | 1.40 | -30~+70 | 10 | 32.0x34.0x18.0 | SMA |
| YXCC501-H | 3-6 | 3 | 0.6 | 16 | 1.40 | -30~+70 | 10 | 27.5x25.4x18.0 | SMA |
| YXCC601-K | 4-8 | 4 | 0.6 | 18 | 1.30 | -30~+70 | 10 | 20.0x26.0x14.0 | SMA |
| YXCC901-K | 6-12 | 6 | 0.6 | 16 | 1.40 | -30~+70 | 10 | 16.0x21.0x13.0 | SMA |
| YXCC1201-A | 8-16 | 8 | 0.8 | 16 | 1.50 | -30~+70 | 10 | 15.0x21.0x13.0 | SMA |
| YXCC1201-A | 8-18 | 10 | 0.8 | 15 | 1.50 | -30~+70 | 10 | 15.0x21.0x13.0 | SMA |
