YXC70A Series
YXC70A Series
Product Features
High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, Ultra- Stable Performance.
Product Application
Typical functional applications: Bypass,Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking.
Typical circuit applications: Microwave/RF/MF Amplifiers, Mixers, Oscillators, Low Noise Amplifiers,Filter Networks, Timing Circuits and Delay Lines.
YXC70A Series Rated Capacitance Table
Code | Cap. pF | Tol. | Rated WVDC | Code | Cap. pF | Tol. | Rated WVDC | Code | Cap. pF | Tol. | Rated WVDC |
0R5 | 0.5 | A B C D | 150V | 3R0 | 3 | A B C D | 150V | 200 | 20 | F | 150V |
0R6 | 0.6 | 3R3 | 3.3 | 220 | 22 | ||||||
0R7 | 0.7 | 3R6 | 3.6 | 240 | 24 | ||||||
0R8 | 0.8 | 3R9 | 3.9 | 270 | 27 | ||||||
0R9 | 0.9 | 4R3 | 4.3 | 300 | 30 | ||||||
1R0 | 1.0 | 4R7 | 4.7 | 330 | 33 | ||||||
1R1 | 1.1 | 5R1 | 5.1 | 360 | 36 | ||||||
1R2 | 1.2 | 5R6 | 5.6 | 390 | 39 | ||||||
1R3 | 1.3 | 6R2 | 6.2 | 430 | 43 | ||||||
1R4 | 1.4 | 6R8 | 6.8 | B C J K | 470 | 47 | |||||
1R5 | 1.5 | 7R5 | 7.5 | 510 | 51 | ||||||
1R6 | 1.6 | 8R2 | 8.2 | 560 | 56 | ||||||
1R7 | 1.7 | 9R1 | 9.1 | 620 | 62 | ||||||
1R8 | 1.8 | 100 | 10 | F G J K | 680 | 68 | |||||
1R9 | 1.9 | 110 | 11 | 750 | 75 | ||||||
2R0 | 2.0 | 120 | 12 | 820 | 82 | ||||||
2R1 | 2.1 | 130 | 13 | 910 | 91 | ||||||
2R2 | 2.2 | 150 | 15 | 101 | 100 | ||||||
2R4 | 2.4 | 160 | 16 | ||||||||
2R7 | 2.7 | 180 | 18 | ||||||||
Remark: special capacitance, tolerance and WVDC are available, consult with Yixin Microwave
Performance
Item | Specifications |
Quality Factors(Q) | greater than 10,000 at 1 MHz. |
Insulation Resistance(IR) | 0.1 pF to 100 pF: 106 Megohms min. @ +25°C at rated WVDC. 105 Megohms min. @ +125°C at rated WVDC. |
Rated Voltage(WVDC) | See Rated Voltage Table |
Dielectric Withstanding Voltage (DWV) | 250% of rated Voltage for 5 seconds. |
Operating Temperature Range | －55℃ to +125℃ |
Temperature Coefficient(TC) | 0±30ppm/℃ |
Capacitance Drift | ±0.02% or ±0.02pF, whichever is greater. |
Piezoelectric Effects | None |
Termination Type | See Termination Type Table |
Environmental Tests
Item | Specifications | Method |
Thermal Shock | DWV: the initial value IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.5% or 0.5pF. | MIL-STD-202, Method 107, Condition A. At the maximum rated temperature(-55℃ and 125℃) stay 30 minutes.The time of removing shall be not more than 3 minutes. Perform the five cycles. |
Moisture resistance | MIL-STD-202, Method 106. | |
Humidity (steady state) | DWV: the initial value IR: the initial value Capacitance change: no more than 0.3% or 0.3pF. | MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while subjected to an environment of 85°C with 85% relative humidity for 240 hours min. |
Life | IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.2% | MIL-STD-202, Method 108, for 2000 hours, at 125℃. 200% Rated voltage D.C. applied. |
YXC70A Chip Dimension
Item | length | width | thickness |
YXC70A | 0.055 (1.40) | 0.055(1.40) | 0.057(1.45)max |
Remarks:1.unit:inch(millimeter).2.Tolerance:±0.10( 0.25)

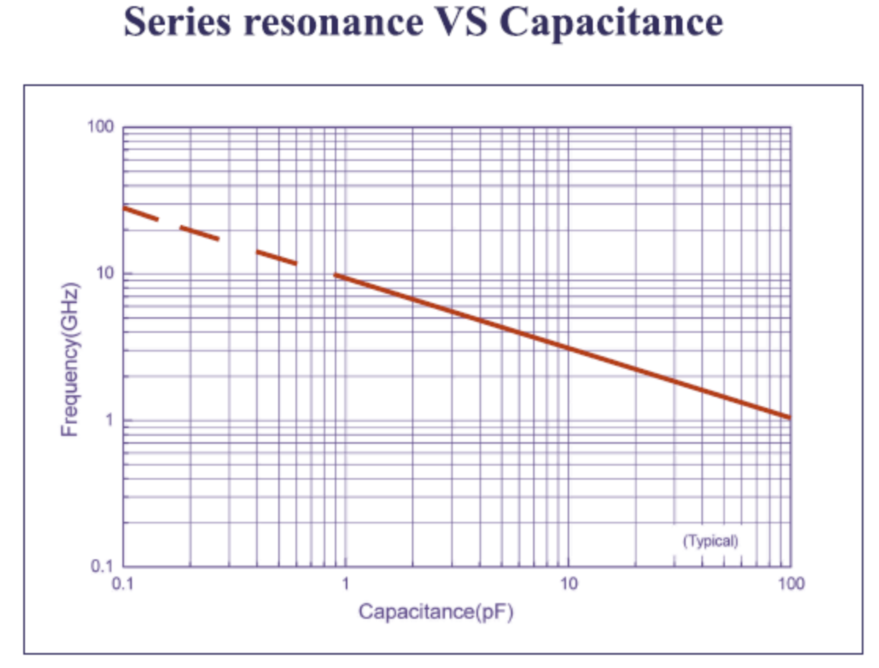

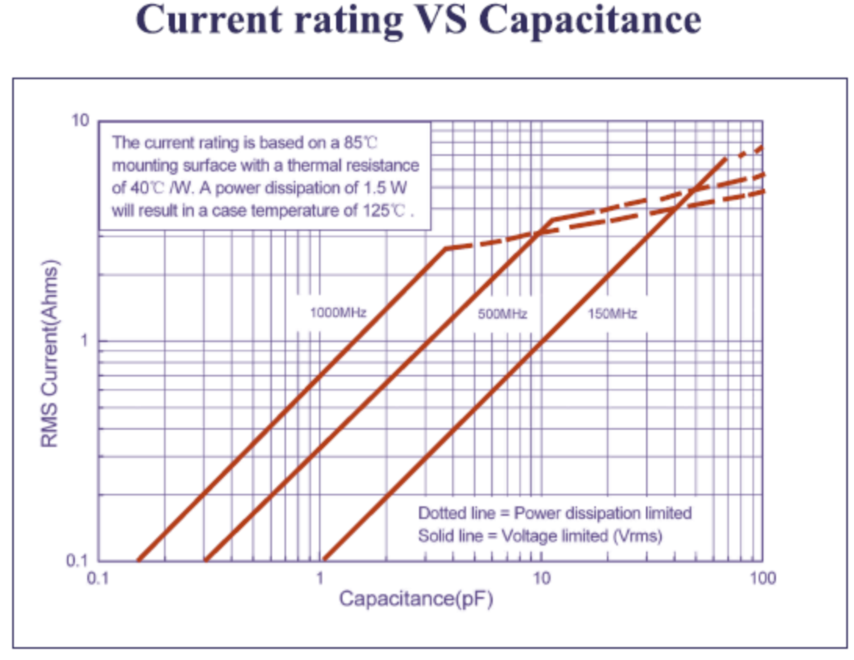

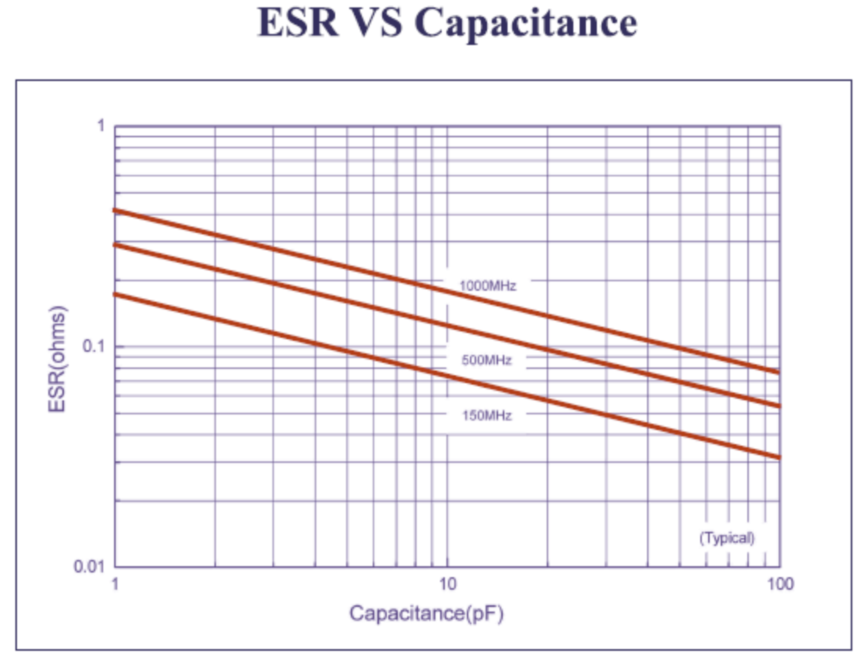

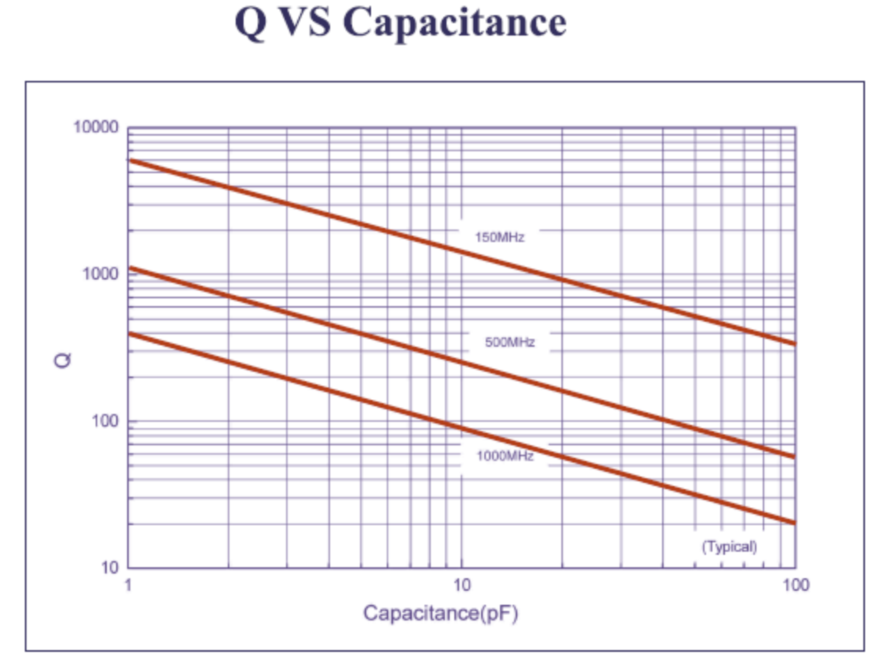

YXC70A Performance Curve
