YXC70B Series

Product Features

High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, Ultra- Stable Performance.

Product Application

Typical functional applications: Bypass,Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking.

Typical circuit applications: Microwave/RF/MF Amplifiers, Mixers, Oscillators, Low Noise Amplifiers,Filter Networks, Timing Circuits and Delay Lines.

YXC70B Series Rated Capacitance Table

Code

Cap. pF

Tol.

Rated WVDC

Code

Cap. pF

Tol.

Rated WVDC

Code

Cap. pF

Tol.

Rated WVDC

Code

Cap. pF

Tol.

Rated WVDC

0R5

0.5

A

B

C

D

500V

3R3

3.3

A

B

C

 D

500V

240

24

F

G

J

K

M

500V

181

180

F

G

J

K  M

300V

0R6

0.6

3R6

3.6

270

27

201

200

0R7

0.7

3R9

3.9

300

30

221

220

200V

0R8

0.8

4R3

4.3

330

33

241

240

0R9

0.9

4R7

4.7

360

36

271

270

1R0

1.0

5R1

5.1

390

39

301

300

1R1

1.1

5R6

5.6

430

43

331

330

1R2

1.2

6R2

6.2

470

47

361

360

1R3

1.3

6R8

6.8

510

51

391

390

1R4

1.4

7R5

7.5

560

56

431

430

1R5

1.5

8R2

8.2

620

62

471

470

1R6

1.6

9R1

9.1

680

68

511

510

100V

1R7

1.7

100

10

750

75

561

560

1R8

1.8

110

11

F

G

J

K

M

820

82

621

620

1R9

1.9

120

12

910

91

681

680

50V

2R0

2.0

130

13

101

100

751

750

2R1

2.1

150

15

111

110

300V

821

820

2R2

2.2

160

16

121

120

911

910

2R4

2.4

180

18

131

130

102

1000

2R7

2.7

200

20

151

150


3R0

3.0

220

22

161

160

Remark: special capacitance, tolerance and WVDC are available, consult with Yixin Microwave

Performance

Item

Specifications

Quality Factors(Q)

greater than 10,000 at 1 MHz.

Insulation Resistance(IR)

0.5 pF to 470 pF:  106 Megohms min.

@ +25°C at rated WVDC. 105 Megohms min.

@ +125°C at rated WVDC.

510 pF to 1000 pF: 105 Megohms min.

@ +25°C at rated WVDC. 104 Megohms min.

@ +125°C at rated WVDC.

Rated Voltage(WVDC)

See Rated Voltage Table

Dielectric Withstanding Voltage (DWV)

250% of rated Voltage for 5 seconds.

Operating Temperature Range

0.5pF to 330 pF: －55℃ to +175℃

360pF to 1000pF: －55℃ to +125℃

Temperature Coefficient(TC)

0±30ppm/℃

Capacitance Drift

±0.02% or ±0.02pF, whichever is greater.

Piezoelectric Effects

None

Termination Type

See Termination Type Table

 Environmental Tests

Item

Specifications

Method

Thermal Shock

DWV: the initial value IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.5% or 0.5pF.

MIL-STD-202, Method 107, Condition A.  At the maximum rated temperature(-55℃ and 125℃) stay 30 minutes.The time of removing shall be not more than 3 minutes. Perform the five cycles.

Moisture resistance

MIL-STD-202, Method 106.

Humidity    (steady state)

DWV: the initial value IR: the initial value Capacitance change: no more than 0.3% or 0.3pF.

MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while subjected to an environment of 85°C with 85% relative humidity for 240 hours min.

Life

IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.2%

MIL-STD-202, Method 108, for 2000 hours, at 125℃.   200% Rated voltage D.C. applied.

 YXC70B Chip Dimension

Item

length

width

thickness

Chip Dimension

0.110 (2.79)

0.110(2.79)

0.10(2.6)max

Remarks:1.unit:inch(millimeter).2.Tolerance:±0.10( 0.25)

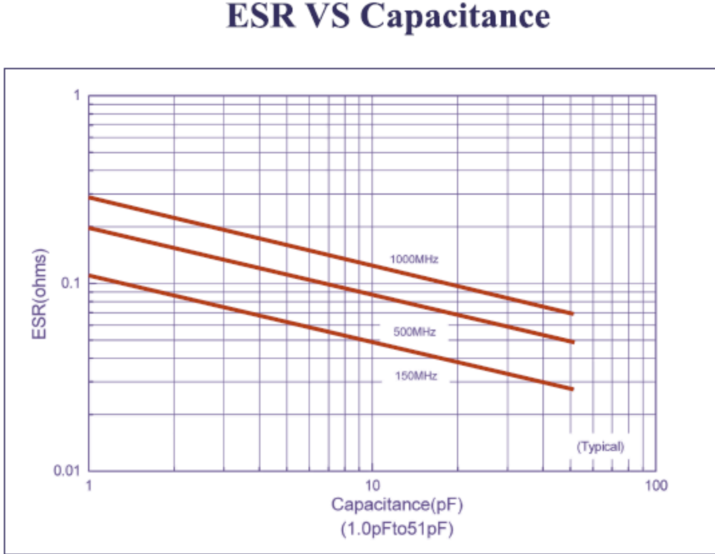

YXC70B Performance Curve
