SMT Chip Termination

General Parameters:

Standard Impedance:50Ω

Substrate Material: BeO(default)、AlN，Al₂O₃

Resistance Tolerance:±5%(default)；±2%, ±1%

Power Rating：3～500W

Frequency Range: DC～18GHz

Temperature Range：-55～+150℃

Temperature Coefficient：≤150ppm/℃

Lead-free, RoHS Compliant

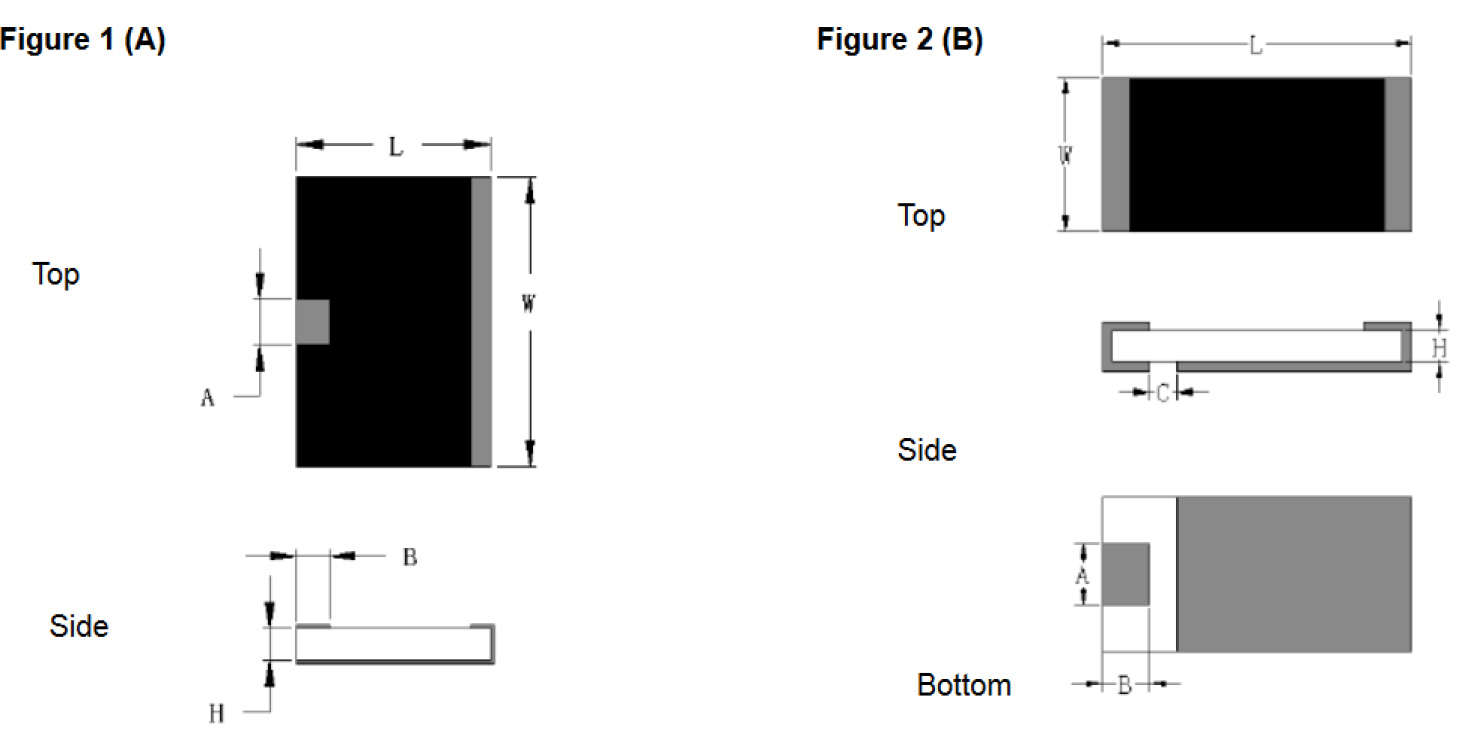

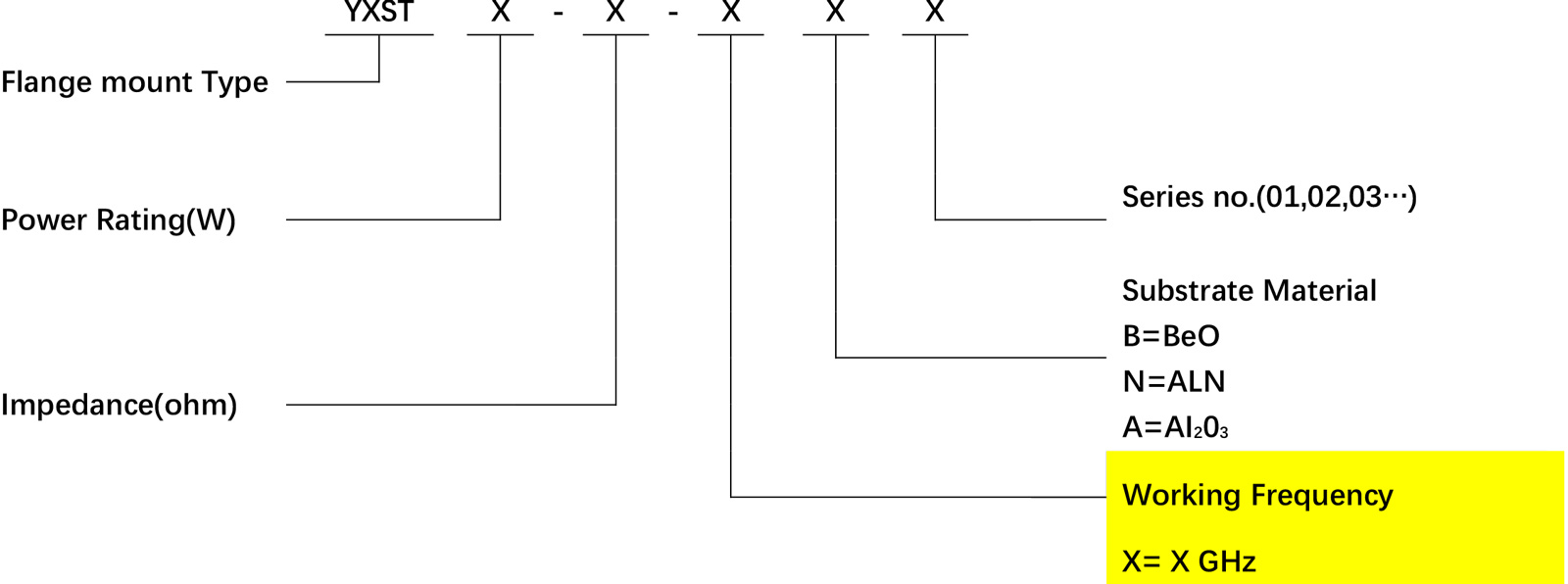

How to order

* We provide customized product according to the customers’ requirement, such as Lead Length、Resistance and Configuration, sizes etc.

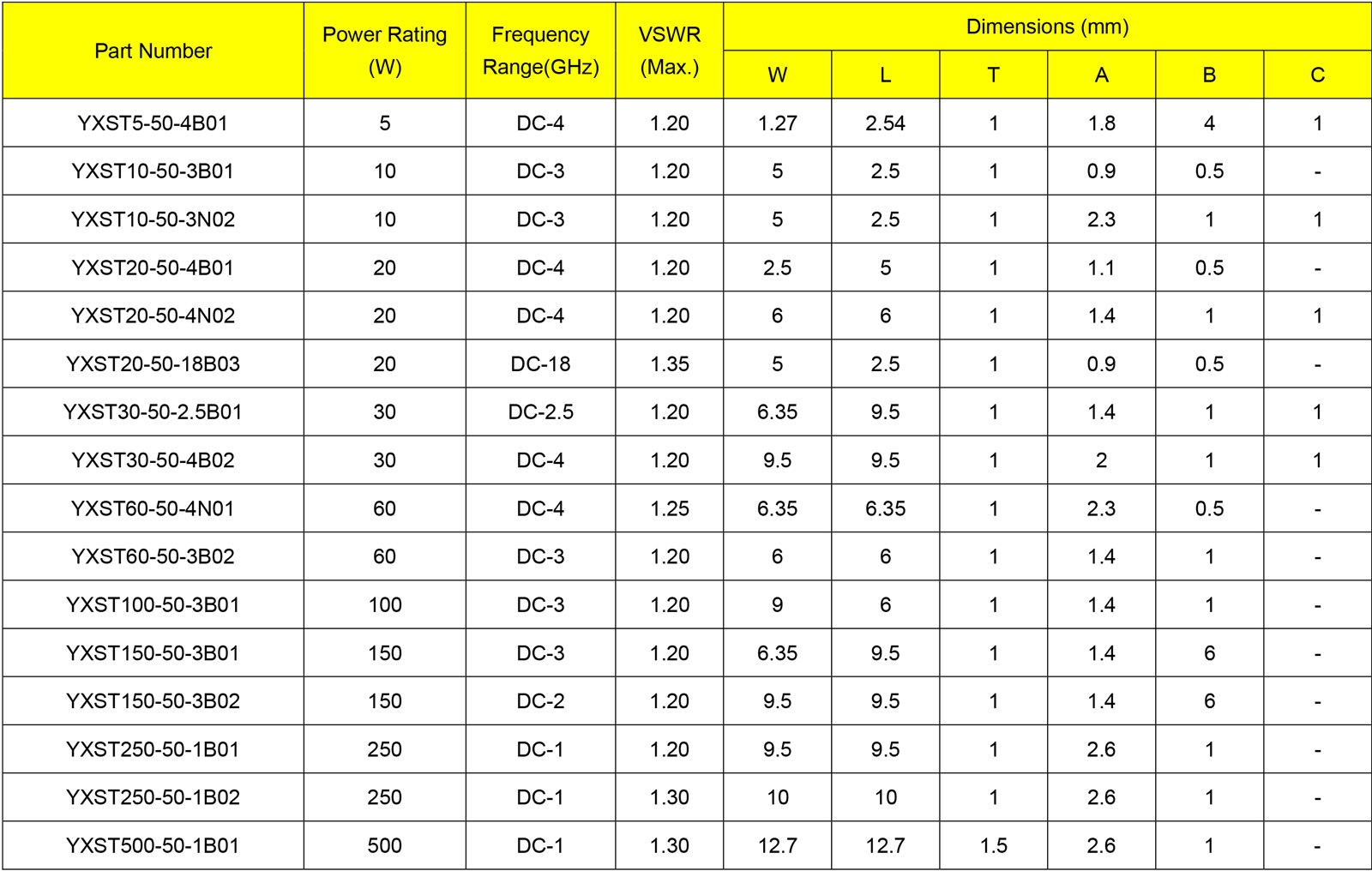

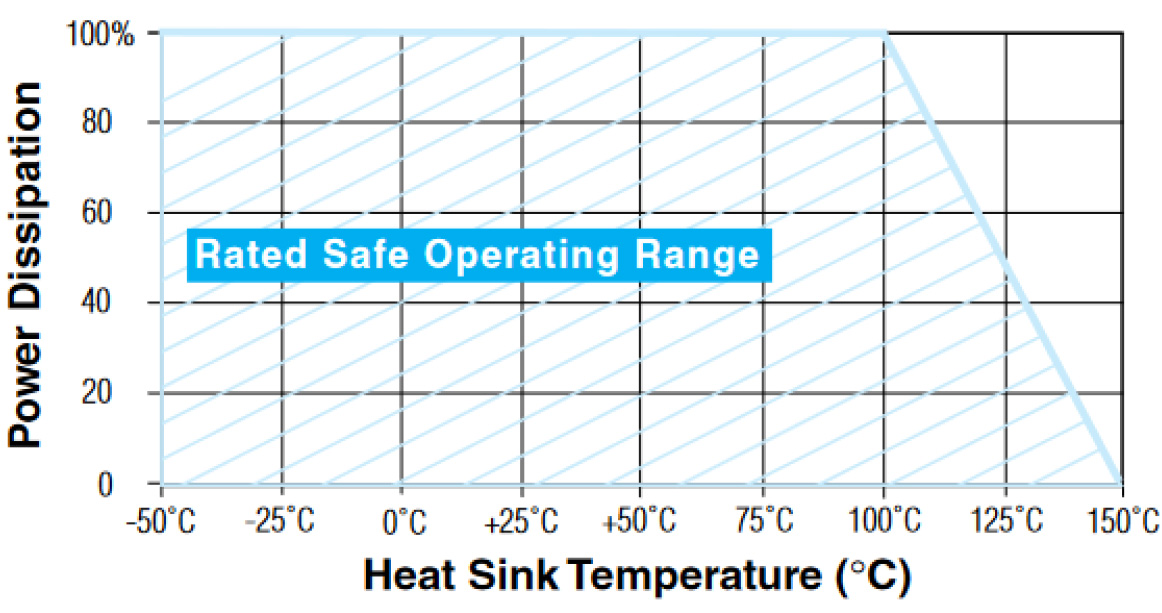

Power Derating Curve (Same as A

Mounting procedures suggestion

1. Solder part or tabs in place with controlled temperature iron(260°C)

2. Forming a small loop in the tab will act as a strain relief as the heat is dissipated.
