Microstrip Circulator

Introduction

1.Frequency range is from 2GHz to 45GHz

2.Used for Port isolation，Module Integration，Transceiver subsystems

3.Customized designs are available

4.All the below are technical parameters at room temperature


Microstrip Circulator

P/N.Frequency RangeInsertion LossIsolationVSWROperating Temp.Forward PowerSize

Connecto

type

(GHz)(dB.Max)(dB.Min)(Max)(℃)(W)L×W×H/mm
YXMC402-A14.5-50.5191.3-55～+85209.5x9.5x4.0GWB
YXMC502-A25.0-6.00.6171.4-55～+85209.5x9.5x4.0GWB
YXMC502-A35.2-5.90.5181.3-55～+852010x10x4.0GWB
YXMC702-A16.5-7.10.5181.3-55～+85208.0x8.0x4.0GWB
YXMC902-A28.6-10.60.6171.4-55～+85306.9x7.0x4.5GWB
YXMC902-A38-120.6171.4-55～+85308.0x8.0x4.0GWB
YXMC902-A58-120.6161.4-55～+85306.5x6.5x3.5GWB
YXMC902-A207-130.8151.5-55～+85306.0x6.0x3.0GWB
YXMC902-A217-130.8151.5-55～+85306.0x6.0x3.0GWB
YXMC902-A228-120.7161.4-55～+85306.0x6.0x3.0GWB
YXMC902-A299-100.5151.5-55～+85305.0x5.0x3.0GWB
YXMC1202-A310-181.0121.6-55～+85205.5x5.5x3.5GWB
YXMC1502-A614-180.7161.4-55～+85205.0x5.0x3.0GWB
YXMC1502-A912-170.8151.5-55～+85205.0x5.0x3.5GWB
YXMC1502-A1814.5-15.50.5201.3-55～+85205.0x5.0x3.5GWB
YXMC1502-A2616.5-17.50.5181.4-55～+85104.0x4.0x3.0GWB
YXMC2002-A19.5-230.8151.4-55～+8556.0x4.5x2.0GWB
YXMC2602-A224.5-26.51.0161.4-55～+8555.0x4.5x3.0GWB
YXMC3002-A234-361.0161.4-55～+8554.5x4.5x3.0GWB
YXMC3002-A733-371.2141.5-55～+8555.0x4.5x3.0GWB

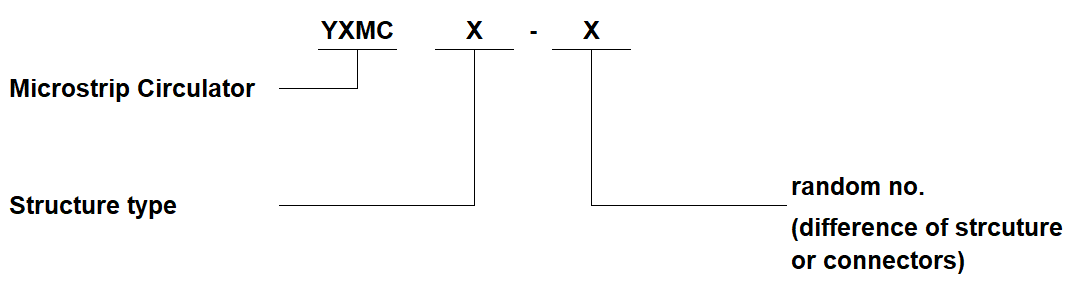

How to order
