Coaxial Circulator

Introduction

1.Frequency range is from 60MHz to 20GHz

2.Used for Port isolation，Module Integration，Transceiver subsystems

3.Customized designs are available

4.All the below are technical parameters at room temperature


Coaxial Circulator (1/2)

P/N.Frequency RangeBandwidthInsertion LossIsolationVSWROperating Temp.Average PowerSizeConnector type
(MHz)MHz(dB.Max)(dB.Min)(Max)(℃)(W)L×W×H/mm
YXCC0104-C70-83130.6181.30-15～+6010041x65x20N/SMA
YXCC0104-C88-108200.5191.25-15～+6010041x65x20N/SMA
YXCC0104-C108-11240.4201.20-15～+6010041x65x20N/SMA
YXCC0104-C118-137190.4201.25-15～+6010041x65x20N/SMA
YXCC0104-C148-174260.4201.25-15～+6010041x65x20N/SMA
YXCC0104-C174-230560.4201.25-15～+6010041x65x20N/SMA
YXCC0103-C225-4001750.7181.30-40～+8510053x77x26N/SMA
YXCC0301-A328-33680.4231.20-15～+6010052x44x22N/SMA
YXCC0402-A400-470700.5201.25-20～+655044x45.5x15.6N/SMA
YXCC0401F-C403-5201170.5171.35-20～+6510050x50x20N/SMA



Coaxial Circulator (2/2)

P/N.Frequency RangeRelative BandwidthInsertion LossIsolationVSWROperating Temp.Average PowerSizeConnector type
(GHz)(dB.Max)(dB.Min)(Max)(℃)(W)L×W×H/mm
YXCC0301-A250-45010%0.4201.25-15～+6510052x44x22N/SMA
YXCC0401-A400-60010%0.3231.20-15～+6510044x49x21N/SMA
YXCC07010.5-1.010%0.4231.20-30～+7510035*38*20N/SMA
YXCC1010.8-1.410%0.3231.20-40～+8510030*33*20N/SMA
YXCC101-A1.2-2.510%0.3231.20-40～+8510025*28*20N/SMA
YXCC201F2.0-4.010%0.4231.20-30～+755025*25*15N/SMA
YXCC401A3.5-8.010%0.4231.20-30～+755016*23*14N/SMA
YXCC801F87.0-20.010%0.4201.25-30～+752012*20*13N/SMA
YXCC200118-24.510%0.6181.35-30～+751012*16*11N/SMA

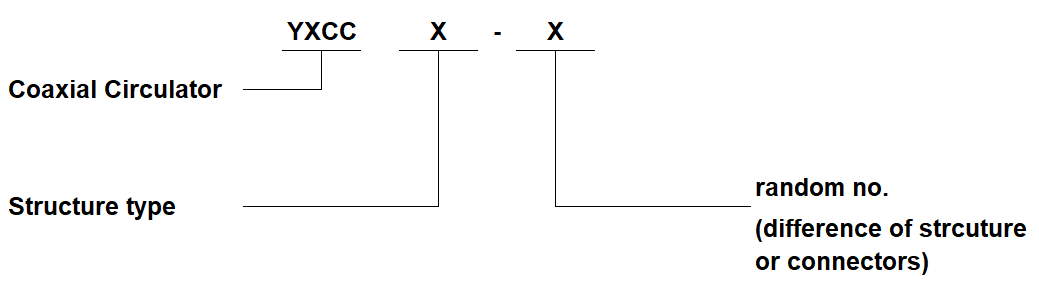

How to order
